The development of welding positioner in China has been quite mature and perfect. We can simply understand the welding positioner in this way, that is, changing the welding position can change the vertical welding, overhead welding and other processes into flat welding, effectively reduce the welding difficulty and complete the welding task. Is the structure of the welding positioner we purchased reasonable? How to judge, let's learn about it together.

焊接變位機

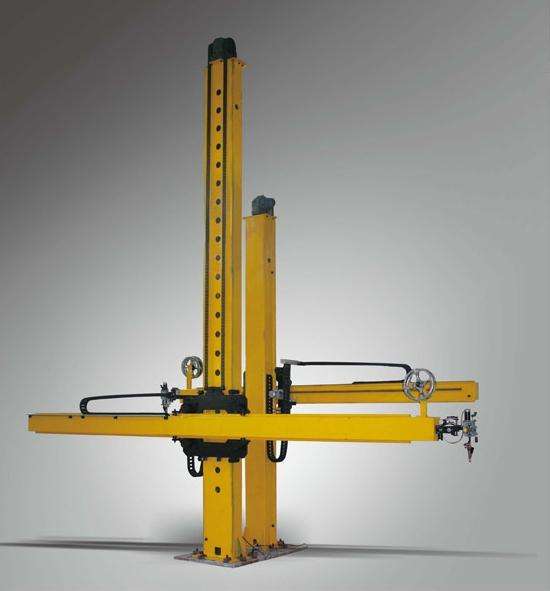

Welding positioner

1、檢查焊接變位機翻轉傳動

1. Check the turnover transmission of welding positioner

(1)傾斜傳動應平穩，在負載下不抖動，整機不會傾覆。當負載Q超過25kg時，應有電源驅動功能。

(1) The tilting transmission shall be stable without shaking under load and the whole machine will not overturn. When the load Q exceeds 25kg, it shall have power drive function.

(2)設置限位裝置，控制傾角，并具有角度指示標志。

(2) Set the limit device to control the inclination and have the angle indication mark.

(3)傾斜機構具有自鎖功能，在負載下不滑移，安 全可靠。

(3) The tilting mechanism has self-locking function, does not slip under load, and is safe and reliable.

2、檢查變位機旋轉驅動電機

2. Check the positioner rotary drive motor

(1)旋轉驅動電機應實現無級調速，并能實現制動。

(1) The rotating drive motor shall realize stepless speed regulation and braking.

(2)在轉動速度范圍內，承受負荷時轉速波動不超過百分之5。

(2) Within the rotating speed range, the speed fluctuation under load shall not exceed 5%.

3、其他注意事項

3. Other precautions

(1)變位機應設置導電裝置，以避免焊接電流穿過軸承、齒輪等傳動部位。導電性設備的電阻不能超過1mΩ，且其容量要滿足焊接額定電流的要求。

(1) The positioner shall be equipped with conductive device to avoid welding current passing through the bearing, gear and other transmission parts. The resistance of conductive equipment shall not exceed 1m Ω, and its capacity shall meet the requirements of welding rated current.

(2)變位機控制部分應設置聯動接口，用于自動焊接。

(2) The control part of positioner shall be provided with linkage interface for automatic welding.

(3)工作臺的結構應便于工件的裝卡或卡具的安裝，其結構形式可與用戶協商確定。

(3) The structure of the workbench shall facilitate the clamping of workpieces or the installation of fixtures, and its structural form can be determined through consultation with the user.

(4)焊接變位機的負載、偏心和重 心距的準確數據應在焊接變位機使用說明書中明確說明。

(4) The accurate data of load, eccentricity and center of gravity distance of welding positioner shall be clearly stated in the operation manual of welding positioner.

在人們眼中，也許會認為焊接變位機是一個不重要的產品。但是，在國際上，包括多種功能的產品，已有百余系列。技術性上有普通型號；有無隙驅動伺服控制型。華天隆數控設備致力于焊接機器人，焊接變位機,，動焊接機等自動焊接設備的研發和生產。

In people's eyes, welding positioner may be regarded as an unimportant product. However, internationally, there are more than 100 series of products, including multi-functional products. Technically, there are ordinary models; With or without gap drive servo control type. Huatianlong CNC equipment is dedicated to the R & D and production of automatic welding equipment such as welding robot, welding positioner and dynamic welding machine.
