With the national made in China 2025 strategic plan, traditional industrial production has gradually begun to digital, intelligent and automatic transformation. The traditional production mode has been unable to meet the needs of the development of enterprise production and management. In this context, automatic welding equipment came into being, which brings more advantages for the development of the majority of central enterprises and effectively improves the market competitiveness of enterprises. So, how much do you know about the composition and types of automatic welding equipment? Today, let Jiude Xiaobian give an overview, hoping to help you.

一、自動化焊接設備的組成部分：

1、 Components of automatic welding equipment:

1、焊接機器人：這是自動化焊接設備的重要組成部分，其主要用途是包括：焊接、切割、碼垛、噴涂、搬運等。

1. Welding robot: This is an important part of automatic welding equipment, its main uses include: welding, cutting, palletizing, spraying, handling, etc.

2、數字化、智能化焊接電源：其輸出功率和焊接特性應與擬用的焊接生產工藝方法相匹配，并裝有與主控制器相連接的接口。

2. Digital and intelligent welding power source: its output power and welding characteristics should match with the proposed welding production process, and the interface with the main controller should be installed.

3、送絲機及其控制與調速系統：對于送絲速度控制精度要求較高送絲機，其控制電路應加測速反饋。

3. Wire feeder and its control and speed regulation system: for wire feeder with high precision, speed measurement feedback should be added to its control circuit.

4、焊接機頭用其移動機構：其由焊接機頭，焊接機頭支承架，懸掛式拖板等組成，地于精密型焊頭機構，其驅動系統應采用裝有編碼器的伺服電動機。

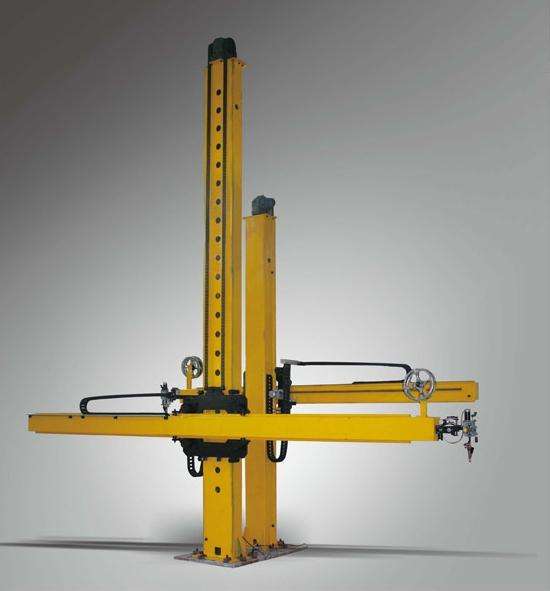

4. The moving mechanism of welding head: it is composed of welding head, welding head support frame, suspended carriage, etc., which is based on precision welding head mechanism, and its driving system shall adopt servo motor with encoder.

5、焊件移動或焊接變位機：如焊接滾輪架，頭尾架翻轉機，回轉平臺和變位機等，精密型的移動變位機構應配伺服電動機驅動。

5. Weldment moving or welding positioner: such as welding roller carrier, head and tail frame turnover machine, rotary platform and positioner, etc. precision moving positioner shall be driven by servo motor.

6、焊件夾緊機構

6. Clamping mechanism of weldment

7、主控制器：也稱作系統控制器，主要用于各組成部分的聯動控制，焊接程序的控制，焊接參數的設定，調整和顯示。必要時可擴展故障診斷和人機對話等控制功能。

7. Main controller: also known as system controller, it is mainly used for linkage control of various components, control of welding procedure, setting, adjustment and display of welding parameters. If necessary, the control functions such as fault diagnosis and man-machine dialogue can be extended.

8、計算機系統軟件：自動化焊接設備中常用的計算機軟件有編程軟件、功能軟件，工藝方法軟件和系統等。

8. Computer system software: programming software, function software, process method software and expert system are commonly used in automatic welding equipment.

9、焊頭導向或跟蹤機構：弧壓自動控制器，焊槍橫擺器和監控系統。

9. Welding head guiding or tracking mechanism: arc voltage automatic controller, welding gun swaying device and monitoring system.

10、輔助裝置：如送絲系統，循環水冷系統、焊劑回收輸送裝置、焊絲支架、電纜軟管及拖鏈機構結構設計電氣控制設計三大部分。

10. Auxiliary devices: such as wire feeding system, circulating water cooling system, flux recovery and conveying device, welding wire bracket, cable hose and drag chain structure design, electrical control design.

隨著焊接技術的不斷前進和創新，相信未來的自動化焊接設備將會給大家?guī)砀囿@喜，為和廣大企業創造出更多價值。

With the continuous progress and innovation of welding technology, I believe that the future automatic welding equipment will bring you more surprises and create more value for the country and the majority of enterprises.
